Description
Medi-Globe dilatation balloons ExPander have a transparent plastic balloon that offers a uniform diameter with maximum radial force. Both variants, biliary and achalasia, can be easily positioned using a guide wire. X-ray markings supported the exact placement.

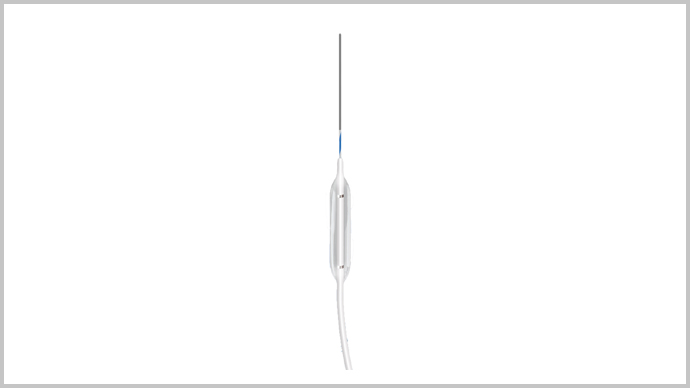

Biliary dilation balloons for placement through the endoscope (TTS)

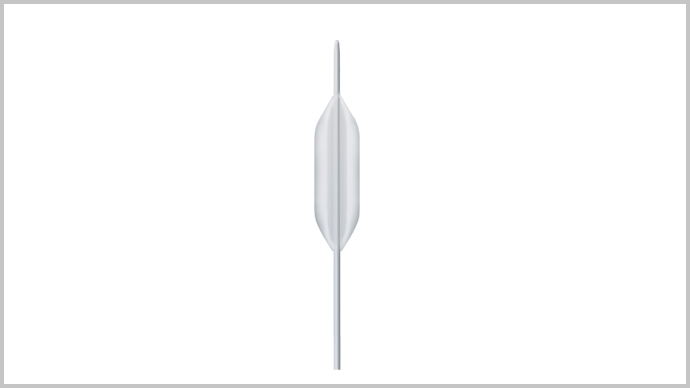

- Achalasia dilatation balloons for placement over the guide wire (OTW)
- compatible with 0.035 "guide wires
- balloon diameters from 4 mm to 8 mm (biliary)
- biliary dilatation balloons in working length 200 cm
Product Images and Videos
Customer Service
More Information
Biliary Single Size
Catheter length 200 cm; radiopaque metal markers; compatible with guide wires up to .035”
| Catalogue No. | Balloon Diameter (mm) | Balloon Length (mm) | Catheter Outer Diameter (mm) | Max. Pressure (psi/atm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|
| GDB-02-04-020 | 4 | 20 | 1.9 | 115/8 | 2.6 |
| GDB-02-06-020 | 6 | 20 | 1.9 | 115/8 | 2.6 |
| GDB-02-08-030 | 8 | 30 | 1.9 | 115/8 | 2.8 |
Achalasia Single Size
Catheter length 115 cm; radiopaque metal markers; compatible with guide wires up to .035”
| Catalogue No. | Balloon Diameter (mm) | Balloon Length (mm) | Catheter Outer Diameter (mm) | Max. Pressure (psi/atm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|
| GDB-02-30-080 | 30 | 80 | 4.7 | 25/1.8 | n.a. |
| GDB-02-35-080 | 35 | 80 | 4.7 | 25/1.8 | n.a. |
| GDB-02-40-080 | 40 | 80 | 4.7 | 25/1.8 | n.a. |
Inflation / Deflation System*
Filling medium: liquid
| Catalogue No. | Description |
|---|---|
| FXB-70-20 | Filling volume 70 ml, incl. manometer 0 – 20 atm, automatic plunger locking system allows comfortable operation, rotating Luer-Lock connector, transparent syringe barrel for easy detection and removal of air bubbles |
Leaflet ExPander Dilation Balloons - Single Use
File size:
165 KB
Type:
PDF
