Description
Medi-Globe stone extraction balloons have a distal plastic balloon framed with X-ray markings, a double or triple-lumen plastic tube and three proximal Luer-Lock connectors as access for contrast media, guide wire or 2-way stopcock for inflation.
Variant with 1-stage balloon catheter:
- tube with diameters Fr. 5, 7 and 7.5mm
- total length 200 cm
- balloon diameters 9-12 mm and 14-16 mm
This instrument is fitted with a syringe corresponding to the maximum filling volume.
Variant with 3-stage balloon catheter:
- tube with a diameter Fr. 7.5
- total length 200 cm
- balloon diameters between 9, 13 and 16 mm.
This instrument is fitted with three syringes corresponding to the respective maximum filling volume.
Product Images and Videos
Customer Service
More Information

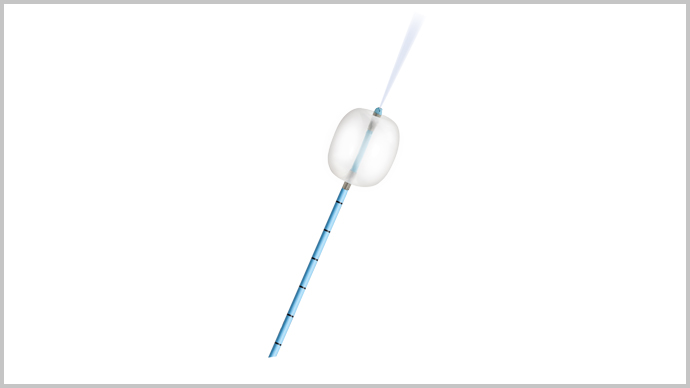

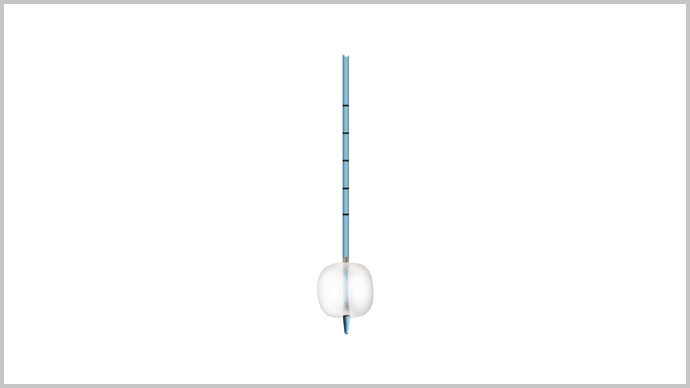

Single-Stage Stone Extraction Balloon – Double Lumen
Incl. syringe for max. air capacity; latex-free
| Catalogue No. | Compatible with Guide Wire (inch) | Catheter Outer Diameter (French) | Contrast Injection | Balloon Diameter in Inflated Condition (mm) | Air Capacity (ml) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|---|---|
| GEB-05-17-025 | .025“ | 5 | Above | 12 | 1.5 | 200 | 2.8 |
| GEB-05-23-035 | .035” | 7 | Above | 16 | 2.5 | 200 | 2.8 |
Single-Stage Stone Extraction Balloon – Triple Lumen
Incl. syringe for max. air capacity; latex-free
| Catalogue No. | Compatible with Guide Wire (inch) | Catheter Outer Diameter (French) | Contrast Injection | Balloon Diameter in Inflated Condition (mm) | Air Capacity (ml) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|---|---|

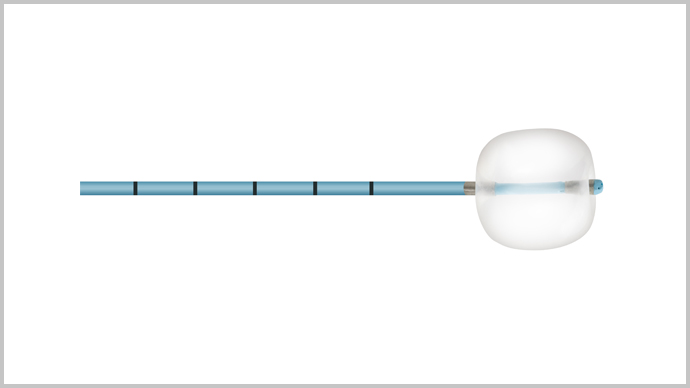

| GEB-06-25-035 | .035“ | 7,5 | Above | 16 | 5.0 | 200 | 2.8 |
| GEB-06-25-035P | .035” | 7,5 | Below | 16 | 5.0 | 200 | 2.8 |

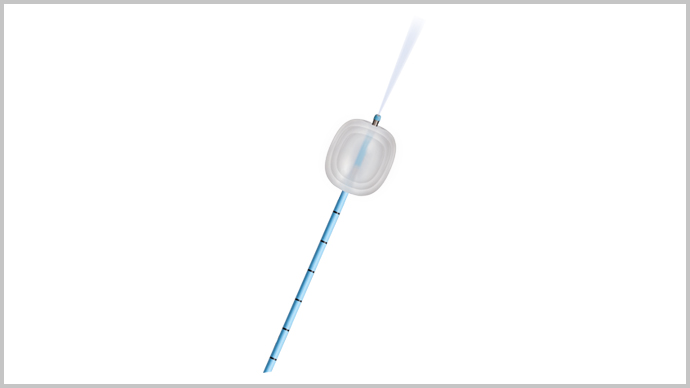

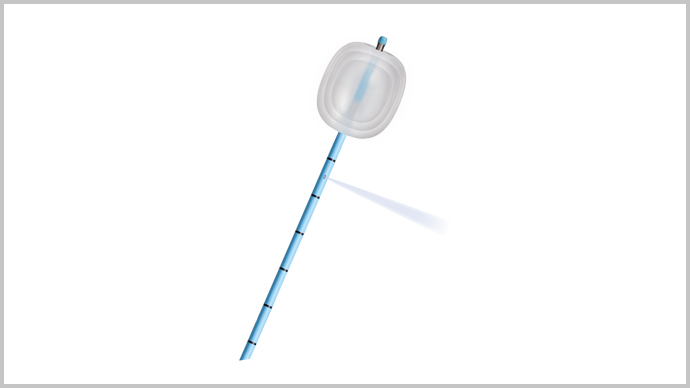

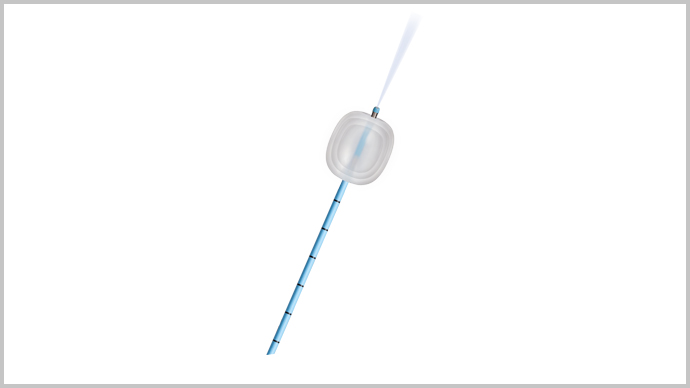

Multi-Stage Stone Extraction Balloon - Triple Lumen
Incl. 3 syringes for max. air capacity; latex-free
| Catalogue No. | Compatible with Guide Wire (inch) | Catheter Outer Diameter (French) | Contrast Injection | Balloon Diameter in Inflated Condition (mm) | Air Capacity (ml) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|---|---|
| GEB-07-25-035 | .035“ | 7.5 | Above | 9-13-16 | 1.5-2.5-5.0 | 200 | 2.8 |
| GEB-07-25-035P | .035” | 7.5 | Below | 9-13-16 | 1.5-2.5-5.0 | 200 | 2.8 |
